Opportunities and trends of transcutaneous auricular vagus nerve stimulation | Gut Microbiota and Integrative Wellness

Opportunities and trends of transcutaneous auricular vagus nerve stimulation

A review and bibliometric analysis

Authors

  • Chen Xin Institute of Acupuncture and Moxibustion, China Academy of Chinese Medical Sciences, Beijing, China
  • Yuzhengheng Zhang
  • Jing Guo
  • Yu Wang
  • Yifei Wang
  • Yanan Zhao
  • Ningyi Zou
  • Shaoyuan Li
  • Peijing Rong

DOI:

https://doi.org/10.54844/gmiw.2024.0519

Keywords:

Transcutaneous auricular vagus nerve stimulation, Non-invasive vagal nerve stimulation, Bibliometric analysis, Auricular branch of the vagus nerve, Stimulating peripheral activity to relieve conditions

Abstract

Background: After more than two decades of development, transcutaneous auricular vagus nerve stimulation (taVNS) has surpassed its role as a mere alternative to VNS and is now applied to various disorders. This study presents a bibliometric analysis to evaluate the global scientific output of taVNS research, aiming to describe its current status and identify potential future trends.

Methods: We conducted a systematic retrieval of taVNS-related studies published between 2000 and 2022 from the Web of Science database. VOSviewer was used to construct networks based on country/institution/author co-authorship, journal/reference co-citation analysis, literature citation analysis and keyword co-occurrence.

Results: A total of 523 relevant articles and reviews were included. Since 2012, there has been a rapid increase in publications and citations. China emerged as the leading contributor in terms of publication output, while Germany had the highest number of citations. Interestingly, research groups from different countries exhibited distinct research ideas and characteristics concerning taVNS, yet collaboration between these groups remained limited. Through a focused examination of key aspects in this field, we identified significant opportunities for the future advancement of taVNS.

Conclusion: This bibliometric analysis emphasizes the interest in and recognition of taVNS as a therapeutic intervention and identifies broader clinical applications, more precise stimulation, and the development and commercialization of wearable devices as key opportunities and challenges for the future.

References

Wang L, Wang Y, Wang Y, et al. Transcutaneous auricular vagus nerve stimulators: a review of past, present, and future devices. Expert Rev Med Devices. 2022;19(1):43–61.

Wang Y, Li L, Li S, et al. Toward Diverse or Standardized: A Systematic Review Identifying Transcutaneous Stimulation of Auricular Branch of the Vagus Nerve in Nomenclature. Neuromodulation. 2022;25:366–379.

Frangos E, Ellrich J, Komisaruk BR. Non-invasive access to the vagus nerve central projections via electrical stimulation of the external ear: fMRI evidence in humans. Brain Stimul. 2015;8(3):624–636. [PMID:25573069 DOI: 10.1016/j.brs.2014.11.018]

Kraus T, Hösl K, Kiess O, Schanze A, Kornhuber J, Forster C. BOLD fMRI deactivation of limbic and temporal brain structures and mood enhancing effect by transcutaneous vagus nerve stimulation. J Neural Transm. 2007;114(11):1485–1493. [PMID:17564758 DOI: 10.1007/s00702-007-0755-z]

Bonaz B, Sinniger V, Pellissier S. Anti-inflammatory properties of the vagus nerve: potential therapeutic implications of vagus nerve stimulation. J Physiol. 2016;594(20):5781–5790. [PMID:27059884 DOI: 10.1113/JP271539]

Peuker ET, Filler TJ. The nerve supply of the human auricle. Clin Anat. 2002;15:35–37. [PMID: 11835542 DOI: 10.1002/ca.1089]

Yakunina N, Kim SS, Nam E-C. Optimization of Transcutaneous Vagus Nerve Stimulation Using Functional MRI. Neuromodulation: Technology at the Neural Interface. 2017;20:290–300. [PMID: 27898202 DOI: 10.1111/ner.12541]

Kraus T, Kiess O, Hösl K, Terekhin P, Kornhuber J, Forster C. CNS BOLD fMRI Effects of Sham-Controlled Transcutaneous Electrical Nerve Stimulation in the Left Outer Auditory Canal – A Pilot Study. Brain Stimulation. 2013;6:798–804. [PMID: 23453934 DOI: 10.1016/j.brs.2013.01.011]

Ventureyra ECG. Transcutaneous vagus nerve stimulation for partial onset seizure therapy. Child's Nerv Syst. 2000;16(2):101–102.

Kim AY, Marduy A, de Melo PS, et al. Safety of transcutaneous auricular vagus nerve stimulation (taVNS): a systematic review and meta-analysis. Sci Rep. 2022;12(1):22055. [PMID:36543841 DOI: 10.1038/s41598-022-25864-1]

Fang J, Rong P, Hong Y, et al. Transcutaneous vagus nerve stimulation modulates default mode network in major depressive disorder. Biol Psychiatry. 2016;79(4):266–273. [PMID:25963932 DOI: 10.1016/j.biopsych.2015.03.025]

Wang L, Zhang J, Guo C, et al. The efficacy and safety of transcutaneous auricular vagus nerve stimulation in patients with mild cognitive impairment: A double blinded randomized clinical trial. Brain Stimul. 2022;15(6):1405–1414.

Rong P, Liu J, Wang L, et al. Effect of transcutaneous auricular vagus nerve stimulation on major depressive disorder: a nonrandomized controlled pilot study. J Affect Disord. 2016;195:172–179. [PMID:26896810 DOI: 10.1016/j.jad.2016.02.031]

Rong P, Liu A, Zhang J, et al. An alternative therapy for drug-resistant epilepsy: transcutaneous auricular vagus nerve stimulation. Chin Med J. 2014;127(2):300–304. [PMID:24438620]

Huang F, Dong J, Kong J, et al. Erratum to: effect of transcutaneous auricular vagus nerve stimulation on impaired glucose tolerance: a pilot randomized study. BMC Complement Altern Med. 2016;16(1):218. [PMID:27411374 DOI: 10.1186/s12906-016-1190-1]

Tu Y, Fang J, Cao J, et al. A distinct biomarker of continuous transcutaneous vagus nerve stimulation treatment in major depressive disorder. Brain Stimul. 2018;11(3):501–508. [PMID:29398576 DOI: 10.1016/j.brs.2018.01.006]

Samoudi AM, Kampusch S, Tanghe E, et al. Numerical modeling of percutaneous auricular vagus nerve stimulation: a realistic 3D model to evaluate sensitivity of neural activation to electrode position. Med Biol Eng Comput. 2017;55(10):1763–1772.

Kaniusas E, Kampusch S, Tittgemeyer M, et al. Current directions in the auricular vagus nerve stimulation II - an engineering perspective. Front Neurosci. 2019;13:772. [PMID:31396044 DOI: 10.3389/fnins.2019.00772]

Van de Steene T, Tanghe E, Tarnaud T, et al. Sensitivity study of neuronal excitation and cathodal blocking thresholds of myelinated axons for percutaneous auricular vagus nerve stimulation. IEEE Trans Biomed Eng. 2020;67(12):3276–3287. [PMID:32203014 DOI: 10.1109/TBME.2020.2982271]

Kaniusas E, Samoudi AM, Kampusch S, et al. Stimulation pattern efficiency in percutaneous auricular vagus nerve stimulation: experimental versus numerical data. IEEE Trans Biomed Eng. 2020;67(7):1921–1935. [PMID:31675313 DOI: 10.1109/TBME.2019.2950777]

Garcia RG, Lin RL, Lee J, et al. Modulation of brainstem activity and connectivity by respiratory-gated auricular vagal afferent nerve stimulation in migraine patients. Pain. 2017;158(8):1461–1472. [PMID:28541256 DOI: 10.1097/j.pain.0000000000000930]

Neuser MP, Teckentrup V, Kühnel A, Hallschmid M, Walter M, Kroemer NB. Vagus nerve stimulation boosts the drive to work for rewards. Nat Commun. 2020;11(1):3555. [PMID:32678082 DOI: 10.1038/s41467-020-17344-9]

Kühnel A, Teckentrup V, Neuser MP, et al. Stimulation of the vagus nerve reduces learning in a go/no-go reinforcement learning task. Eur Neuropsychopharmacol. 2020;35:17–29. [PMID:32404279 DOI: 10.1016/j.euroneuro.2020.03.023]

Ferstl M, Teckentrup V, Lin WM, et al. Non-invasive vagus nerve stimulation boosts mood recovery after effort exertion. Psychol Med. 2022;52(14):3029–3039. [PMID:33586647 DOI: 10.1017/S0033291720005073]

Wang Y, Li SY, Wang D, et al. Transcutaneous auricular vagus nerve stimulation: from concept to application. Neurosci Bull. 2021;37(6):853–862.

Dedoncker J, Vanderhasselt MA, Ottaviani C, Slavich GM. Mental health during the COVID-19 pandemic and beyond: the importance of the vagus nerve for biopsychosocial resilience. Neurosci Biobehav Rev. 2021;125:1–10. [PMID:33582230 DOI: 10.1016/j.neubiorev.2021.02.010]

Yap JYY, Keatch C, Lambert E, Woods W, Stoddart PR, Kameneva T. Critical review of transcutaneous vagus nerve stimulation: challenges for translation to clinical practice. Front Neurosci. 2020;14:284. [PMID:32410932 DOI: 10.3389/fnins.2020.00284]

Kaniusas E, Kampusch S, Tittgemeyer M, et al. Current directions in the auricular vagus nerve stimulation I - A physiological perspective. Front Neurosci. 2019;13:854. [PMID:31447643 DOI: 10.3389/fnins.2019.00854]

Redgrave J, Day D, Leung H, et al. Safety and tolerability of Transcutaneous Vagus Nerve stimulation in humans; a systematic review. Brain Stimul. 2018;11(6):1225–1238. [PMID:30217648 DOI: 10.1016/j.brs.2018.08.010]

Gao Y, Zhu Y, Lu X, et al. Vagus nerve stimulation paired with rehabilitation for motor function, mental health and activities of daily living after stroke: a systematic review and meta-analysis. J Neurol Neurosurg Psychiatry. 2023;94(4):257–266. [PMID:36600569 DOI: 10.1136/jnnp-2022-329275]

Meints SM, Garcia RG, Schuman-Olivier Z, et al. The effects of combined respiratory-gated auricular vagal afferent nerve stimulation and mindfulness meditation for chronic low back pain: a pilot study. Pain Med. 2022;23(9):1570–1581. [PMID:35148407 DOI: 10.1093/pm/pnac025]

Vanderhasselt M, Ottaviani C. Combining top-down and bottom-up interventions targeting the vagus nerve to increase resilience. Neurosci Biobehav Rev. 2021;132:725–729.

Finisguerra A, Crescentini C, Urgesi C. Transcutaneous vagus nerve stimulation affects implicit spiritual self-representations. Neuroscience. 2019;412:144–159. [PMID:31176701 DOI: 10.1016/j.neuroscience.2019.05.059]

Yan L, Qian Y, Li H. Transcutaneous vagus nerve stimulation combined with rehabilitation training in the intervention of upper limb movement disorders after stroke: a systematic review. Neuropsychiatr Dis Treat. 2022;18:2095–2106.

Colzato L, Beste C. A literature review on the neurophysiological underpinnings and cognitive effects of transcutaneous vagus nerve stimulation: challenges and future directions. J Neurophysiol. 2020;123:1739–1755. [DOI: 10.1152/jn.00057.2020]

Broncel A, Bocian R, Kłos-Wojtczak P, Kulbat-Warycha K, Konopacki J. Vagal nerve stimulation as a promising tool in the improvement of cognitive disorders. Brain Res Bull. 2020;155:37–47. [PMID:31790720 DOI: 10.1016/j.brainresbull.2019.11.011]

Zhao R, Chang MY, Cheng C, et al. Transcutaneous auricular vagus stimulation (taVNS) improves human working memory performance under sleep deprivation stress. Behav Brain Res. 2023;439:114247.

Ridgewell C, Heaton KJ, Hildebrandt A, Couse J, Leeder T, Neumeier WH. The effects of transcutaneous auricular vagal nerve stimulation on cognition in healthy individuals: a meta-analysis. Neuropsychology. 2021;35(4):352–365. [PMID:34043386 DOI: 10.1037/neu0000735]

Zhao R, He ZY, Cheng C, et al. Assessing the effect of simultaneous combining of transcranial direct current stimulation and transcutaneous auricular vagus nerve stimulation on the improvement of working memory performance in healthy individuals. Front Neurosci. 2022;16:947236. [PMID:35928012 DOI: 10.3389/fnins.2022.947236]

Pihlaja M, Failla L, Peräkylä J, Hartikainen KM. Reduced frontal nogo-N2 with uncompromised response inhibition during transcutaneous vagus nerve stimulation-more efficient cognitive control? Front Hum Neurosci. 2020;14:561780. [PMID:33132877 DOI: 10.3389/fnhum.2020.561780]

Szeska C, Richter J, Wendt J, Weymar M, Hamm AO. Attentive immobility in the face of inevitable distal threat-Startle potentiation and fear bradycardia as an index of emotion and attention. Psychophysiology. 2021;58(6):e13812. [PMID:33759212 DOI: 10.1111/psyp.13812]

Bretherton B, Atkinson L, Murray A, Clancy J, Deuchars S, Deuchars J. Effects of transcutaneous vagus nerve stimulation in individuals aged 55 years or above: potential benefits of daily stimulation. Aging. 2019;11(14):4836–4857. [PMID:31358702 DOI: 10.18632/aging.102074]

Bustamante-Sánchez Á, Tornero-Aguilera JF, Fernández-Elías VE, Hormeño-Holgado AJ, Dalamitros AA, Clemente-Suárez VJ. Effect of stress on autonomic and cardiovascular systems in military population: a systematic review. Cardiol Res Pract. 2020;2020:7986249. [PMID:32850146 DOI: 10.1155/2020/7986249]

Sellaro R, de Gelder B, Finisguerra A, Colzato LS. Transcutaneous vagus nerve stimulation (tVNS) enhances recognition of emotions in faces but not bodies. Cortex. 2018;99:213–223. [PMID:29275193 DOI: 10.1016/j.cortex.2017.11.007]

Borges U, Knops L, Laborde S, Klatt S, Raab M. Transcutaneous vagus nerve stimulation may enhance only specific aspects of the core executive functions. A randomized crossover trial. Front Neurosci. 2020;14:523. [PMID:32523510 DOI: 10.3389/fnins.2020.00523]

Colzato LS, Wolters G, Peifer C. Transcutaneous vagus nerve stimulation (tVNS) modulates flow experience. Exp Brain Res. 2018;236(1):253–257. [PMID:29128975 DOI: 10.1007/s00221-017-5123-0]

Colzato LS, Ritter SM, Steenbergen L. Transcutaneous vagus nerve stimulation (tVNS) enhances divergent thinking. Neuropsychologia. 2018;111:72–76. [PMID:29326067 DOI: 10.1016/j.neuropsychologia.2018.01.003]

Llanos F, McHaney JR, Schuerman WL, Yi HG, Leonard MK, Chandrasekaran B. Non-invasive peripheral nerve stimulation selectively enhances speech category learning in adults. NPJ Sci Learn. 2020;5:12. [PMID:32802406 DOI: 10.1038/s41539-020-0070-0]

Thakkar VJ, Engelhart AS, Khodaparast N, Abadzi H, Centanni TM. Transcutaneous auricular vagus nerve stimulation enhances learning of novel letter-sound relationships in adults. Brain Stimul. 2020;13(6):1813–1820. [PMID:33127581 DOI: 10.1016/j.brs.2020.10.012]

Kaan E, De Aguiar I, Clarke C, Lamb DG, Williamson JB, Porges EC. A transcutaneous vagus nerve stimulation study on verbal order memory. J Neurolinguistics. 2021;59:100990.

Phillips I, Calloway RC, Karuzis VP, Pandža NB, O’Rourke P, Kuchinsky SE. Transcutaneous auricular vagus nerve stimulation strengthens semantic representations of foreign language tone words during initial stages of learning. J Cogn Neurosci. 2021;34(1):127–152.

Steenbergen L, Colzato LS, Maraver MJ. Vagal signaling and the somatic marker hypothesis: the effect of transcutaneous vagal nerve stimulation on delay discounting is modulated by positive mood. Int J Psychophysiol. 2020;148:84–92. [PMID:31734442 DOI: 10.1016/j.ijpsycho.2019.10.010][

National Institutes of Health. Stimulating Peripheral Activity to Relieve Conditions (SPARC) Phase 2 2022. Accessed May 16, 2023. https://commonfund.nih.gov/sparc/fundedresearch/phase2

Ahmed U, Chang YC, Zafeiropoulos S, Nassrallah Z, Miller L, Zanos S. Strategies for precision vagus neuromodulation. Bioelectron Med. 2022;8(1):9. [PMID:35637543 DOI: 10.1186/s42234-022-00091-1]

Bonaz B, Sinniger V, Pellissier S. The Vagus Nerve in the Neuro-Immune Axis: Implications in the Pathology of the Gastrointestinal Tract. Front Immunol. 2017;8:1452. [DOI: 10.3389/fimmu.2017.01452]

Tynan A, Brines M, Chavan SS. Control of inflammation using non-invasive neuromodulation: past, present and promise. Int Immunol. 2022;34(2):119–128. [PMID:34558623 DOI: 10.1093/intimm/dxab073]

Cirillo G, Negrete-Diaz F, Yucuma D, et al. Vagus nerve stimulation: a personalized therapeutic approach for Crohn’s and other inflammatory bowel diseases. Cells. 2022;11(24):4103. [PMID:36552867 DOI: 10.3390/cells11244103]

Sen T, Cawthon CR, Ihde BT, et al. Diet-driven microbiota dysbiosis is associated with vagal remodeling and obesity. Physiol Behav. 2017;173:305–317. [PMID:28249783 DOI: 10.1016/j.physbeh.2017.02.027]

Furman D, Campisi J, Verdin E, et al. Chronic inflammation in the etiology of disease across the life span. Nat Med. 2019;25(12):1822–1832. [PMID:31806905 DOI: 10.1038/s41591-019-0675-0]

Straub RH, Cutolo M, Buttgereit F, Pongratz G. Energy regulation and neuroendocrine-immune control in chronic inflammatory diseases. J Intern Med. 2010;267(6):543–560. [PMID:20210843 DOI: 10.1111/j.1365-2796.2010.02218.x]

Straub RH. The brain and immune system prompt energy shortage in chronic inflammation and ageing. Nat Rev Rheumatol. 2017;13(12):743–751. [PMID:29021568 DOI: 10.1038/nrrheum.2017.172]

Martel J, Chang SH, Ko YF, Hwang TL, Young JD, Ojcius DM. Gut barrier disruption and chronic disease. Trends Endocrinol Metab. 2022;33(4):247–265. [PMID:35151560 DOI: 10.1016/j.tem.2022.01.002]

Wang P, Song M, Eliassen AH, et al. Optimal dietary patterns for prevention of chronic disease. Nat Med. 2023;29(3):719–728. [PMID:36914892 DOI: 10.1038/s41591-023-02235-5][PubMed]

SPARC. [SPARC Portal]. Accessed January 2, 2023. https://sparc.science/

Capogrosso M, Lempka SF. A computational outlook on neurostimulation. Bioelectron Med. 2020;6:10. [PMID:32490037 DOI: 10.1186/s42234-020-00047-3]

Dabiri B, Zeiner K, Nativel A, Kaniusas E. Auricular vagus nerve stimulator for closed-loop biofeedback-based operation. Analog Integr Circuits Process. 2022;112:237–46. [PMID:35571976 DOI: 10.1007/s10470-022-02037-8]

Cook DN, Thompson S, Stomberg-Firestein S, Bikson M, George MS, Jenkins DD, et al. Design and validation of a closed-loop, motor-activated auricular vagus nerve stimulation (MAAVNS) system for neurorehabilitation. Brain Stimul 2020;13:800–3. [PMID: 32289710 DOI: 10.1016/j.brs.2020.02.028]

Burger AM, D’Agostini M, Verkuil B, Van Diest I. Moving beyond belief: A narrative review of potential biomarkers for transcutaneous vagus nerve stimulation. Psychophysiology. 2020;57:e13571. [PMID: 32202671 DOI: 10.1111/psyp.13571]

Marsal S, Corominas H, de Agustín JJ, et al. Non-invasive vagus nerve stimulation for rheumatoid arthritis: a proof-of-concept study. Lancet Rheumatol. 2021;3(4):e262–e269. [PMID:38279410 DOI: 10.1016/S2665-9913(20)30425-2]

Bremner JD, Gurel NZ, Wittbrodt MT, et al. Application of noninvasive vagal nerve stimulation to stress-related psychiatric disorders. J Pers Med. 2020;10(3):119. [PMID:32916852 DOI: 10.3390/jpm10030119]

Downloads

Published

2024-06-06

How to Cite

1.
Xin C, Zhang Y, Guo J, Wang Y, Wang Y, Zhao Y, Zou N, Li S, Rong P. Opportunities and trends of transcutaneous auricular vagus nerve stimulation: A review and bibliometric analysis. Gut Microb Integr Wellness. 2024;2. doi:10.54844/gmiw.2024.0519

Issue

Vol. 2 (2024)

Section

Review Article

Downloads

Download data is not yet available.
ORIGINAL ARTICLE

Opportunities and trends in the study of transcutaneous auricular vagus nerve stimulation: A review and bibliometric analysis


Chen Xin1,2, Yuzhengheng Zhang1, Jing Guo3, Yu Wang1, Yifei Wang1, Ya’nan Zhao1, Ningyi Zou1, Shaoyuan Li1,*, Peijing Rong1,2,*

1Institute of Acupuncture and Moxibustion, China Academy of Chinese Medical Sciences, Beijing 100700, China

2Institute of Basic Research in Clinical Medicine, China Academy of Chinese Medical Sciences, Beijing 100700, China

3Acupuncture and Massage College, Health and Rehabilitation College, Nanjing University of Chinese Medicine, Nanjing 210023, Jiangsu Province, China


*Corresponding Author:

Shaoyuan Li, Institute of Acupuncture and Moxibustion, China Academy of Chinese Medical Sciences, No. 16, Nanxiao Street, Dongzhimen Nei, Dongcheng District, Beijing 100700, China. Email: 704488328@qq.com; https://orcid.org/0000-0002-5743-6273

Peijing Rong, Institute of Acupuncture and Moxibustion, China Academy of Chinese Medical Sciences, No. 16, Nanxiao Street, Dongzhimen Nei, Dongcheng District, Beijing 100700, China. Email: drrongpj@163.com; https://orcid.org/0000-0002-7288-2319


Received: 8 January 2024 Revised: 16 April 2024 Accepted: 24 April 2024


ABSTRACT

Background: After more than two decades of development, transcutaneous auricular vagus nerve stimulation (taVNS) has surpassed its role as a mere alternative to vagus nerve stimulation and is now applied to various disorders. This study presents a bibliometric analysis to evaluate the global scientific output of taVNS research, aiming to describe its current status and identify potential future trends. Methods: We conducted a systematic retrieval of taVNS-related studies published between 2000 and 2022 from the Web of Science database. VOSviewer was used to construct networks based on analyses of country/institution/author co-authorship, journal/reference co-citation, literature citation, and keyword co-occurrence. Results: A total of 523 relevant articles and reviews were included. Since 2012, there has been a rapid increase in publications and citations. China emerged as the leading contributor in terms of publication output, whereas Germany received the highest number of citations. Interestingly, research groups from different countries exhibited distinct research ideas and focuses on taVNS, yet collaboration between these groups remained limited. Through a focused examination of key issues in this field, we identified significant opportunities for the advancement of taVNS research. Conclusion: This bibliometric analysis emphasizes researchers’ interest in and recognition of taVNS as a therapeutic intervention. It also identifies the expansion of clinical applications, the development of more precise stimulation, and the development and commercialization of wearable devices as key opportunities and challenges for taVNS.

Key words: transcutaneous auricular vagus nerve stimulation, noninvasive vagal nerve stimulation, bibliometric analysis, auricular branch of the vagus nerve, stimulating peripheral activity to relieve conditions

INTRODUCTION

Transcutaneous auricular vagus nerve stimulation (taVNS) is a noninvasive method of stimulating the vagus nerve through the skin of the ear. It has gained popularity as a treatment for various conditions, including depression, anxiety, and chronic pain.[1] However, because taVNS is a nascent and rapidly evolving therapeutic method, there is some confusion surrounding it. For instance, there is a lack of consistency in the terminology and stimulation parameters used to describe the stimulation of the auricular branch of the vagus nerve. Furthermore, despite the increasingly broad application of taVNS, there are still many unknowns regarding its underlying mechanisms.[2] Thus, it is crucial to achieve a comprehensive understanding of the current state of taVNS research and to identify key research tasks, especially in its early, robust stages of development.

Bibliometric analysis is a quantitative method that enables the identification of patterns, trends, and relationships among publications in the scientific literature. It is a valuable tool for exploring the research landscape in a specific field. In this bibliometric analysis, we provide a comprehensive overview of taVNS research published between 2000 and 2022. By examining the existing literature on taVNS, we identify research trends, highlight significant findings, and provide valuable insights for future taVNS research.

METHODS

Data sources and search strategy

On January 15, 2023, we systematically searched the Web of Science Core Collection (WoSCC) database, including SCI-EXPANDED, using the following set of terms: (vagus nerve stimulation OR vagal nerve stimulation OR vagal afferent nerve stimulation OR VNS) AND (transcutaneous OR transdermal OR noninvasive OR non-invasive OR tVNS OR t-VNS OR taVNS OR ta-VNS OR auricular OR aVNS OR AVNS) AND (English [Language]). The document type was limited to articles or reviews, and the publication timespan was set to 2000 – 2022. To identify potentially eligible studies, two of the authors (Chen Xin and Shaoyuan Li) independently screened all the titles and abstracts. Any disagreements were resolved through discussion and consensus. The search terms and inclusion criteria were obtained from previously published literature.[2]Table 1 presents the search strategy and results.

Table 1: Search strategy.
Set Result Search query
#1 8238 Topic Search = (vagus nerve stimulation OR vagal nerve stimulation OR vagal afferent nerve stimulation)
#2 229,132 Topic Search = (transcutaneous OR transdermal OR noninvasive OR non-invasive OR tVNS OR t-VNS OR taVNS OR ta-VNS OR auricular OR aVNS OR AVNS)
#3 1218 #1 AND #2
#4 1202 #3 AND English (language)
#5 906 #4 AND Article or Review (document type)
#6 903 #5 NOT 2023 (year)
#7 523 Screen all the titles and abstracts to identify potentially eligible studies and select studies based on the full text.[2]

Bibliometric analysis and visualization

Using VOSviewer (version 1.6.18, Leiden University, the Netherlands), we performed a bibliometric analysis of 523 taVNS-related publications published between 2000 and 2022. We also used VOSviewer to construct networks based on analyses of country/institution/author coauthorship, journal/reference co-citation, literature citation, and keyword co-occurrence. To present the most relevant keywords, we used three kinds of visualization (network, overlay, and density visualization) and focused on the keywords that occurred more than five times. Using Microsoft Excel 2019 (Microsoft Corp., Redmond, WA, USA), we managed the data, created charts and data tables, and calculated the total number of citations per year. We also used Microsoft Excel 2019 to assess the annual publication pattern of countries/regions and institutions as well as trends over time in the most highly cited publications for different major topics. To determine the impact of the publications included in our study, we collected the journals’ impact factors from the 2021 Journal Citation Reports (JCR, Clarivate Analytics, Philadelphia, PA, USA).

RESULTS

Citation count and publication period

In total, 523 publications were obtained from the WoSCC for the period 2000 – 2022, including 399 articles (76.3%) and 124 reviews (23.7%). Collectively, the publications have been cited 11,368 times to date, with an average of 21.74 citations per article. These publications came from 51 countries/regions; 810 institutions; 2203 authors; and 228 journals. As Figure 1 shows, the annual publication output exhibited a trend of rapid growth beginning in 2012. Moreover, the number of citations these publications received exhibited annual growth after 2012.

Figure 1

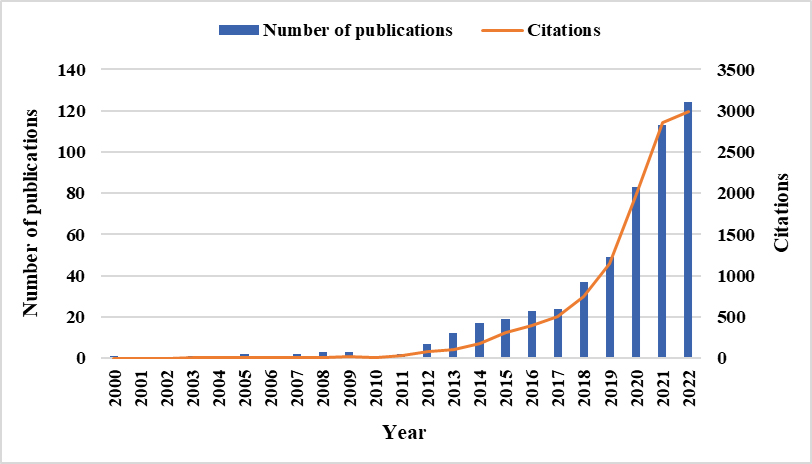

Figure 1. Trends in the annual number of publications and citations.

A total of 523 taVNS-related articles published between 2000 and 2022 were retrieved from the WoSCC. During this period, global publications in the field exhibited a strong growth trend: Although only one article (0.19%) was published in 2000, 124 were published in 2022. The time curve generated by the logistic regression model indicated that the field has experienced a period of consistent growth in global publication output.

Distribution of countries/regions and institutions

Figure 2A highlights the respective contributions of the 15 countries with the most publications in the field. The varying sizes of the circles correspond to the number of publications from each country/region. A total of 51 countries and regions contributed publications. Among them, China had the most publications (150), accounting for 28.68% of the articles. The United States followed China closely, with 139 publications (26.58%), and Germany ranked third, with 128 publications (24.47%). Other notable contributors included England (40, 7.65%), Belgium (39, 7.46%), Italy (33, 6.31%), the Netherlands (33, 6.31%), Austria (27, 5.16%), France (19, 3.63%), Canada (15, 2.87%), Denmark (15, 2.87%), Spain (14, 2.68%), South Korea (13, 2.49%), Switzerland (13, 2.49%), and Brazil (12, 2.29%).

Figure 2

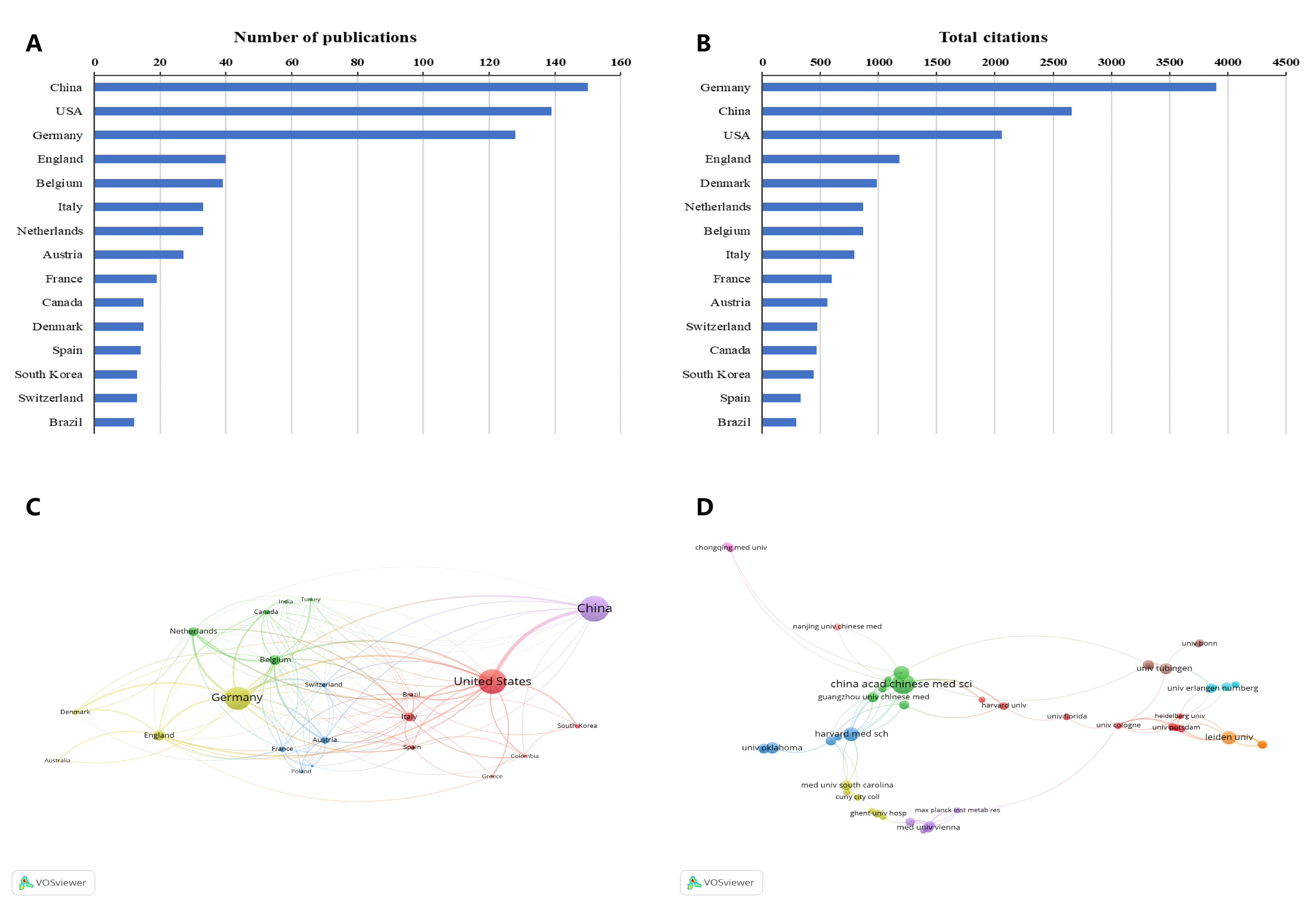

Figure 2. Countries/regions contributing to taVNS research. (A) The 15 countries with the most publications. (B) Total citations of a country/region’s articles in publications from other countries/regions. (C) Network map of countries/regions whose articles were co-cited in more than five publications. (D) Network map of institutions whose articles were co-cited in more than five publications. taVNS, transcutaneous auricular vagus nerve stimulation.

Figure 2B provides information about the total citations of a country/region’s articles in publications from other countries/regions. Studies from Germany received the highest number of citations (3905 citations), followed by those from China (2658 citations), the United States (2058 citations), England (1176 citations), Denmark (987 citations), the Netherlands (869 citations), Belgium (868 citations), Italy (791 citations), France (600 citations), Austria (559 citations), Switzerland (476 citations), Canada (465 citations), South Korea (443 citations), Spain (331 citations), and Brazil (291 citations).

The coauthorship analysis examined 23 countries with more than five publications (Figure 2C). The five countries with the highest total link strength were the United States (total link strength = 123 times), Germany (116), Belgium (78), Italy (63), and China (60).

A total of 765 institutions were identified as contributors to taVNS research. With 51 publications (9.75% of the articles), China Academy of Chinese Medical Sciences led the list, followed by Capital Medical University (24, 4.59%), Harvard Medical School (23, 4.40%), Leiden University (21, 4.02%), and the University of Oklahoma (16, 3.10%).

We analyzed the coauthorship of 56 institutions with more than five publications (Figure 2D). The exclusion of one item that was not connected revealed the collaborations of the other institutions. The five institutions with the highest total link strength were China Academy of Chinese Medical Sciences (total link strength = 59 times), Capital Medical University (33), Leiden University (33), Harvard Medical School (27), and the Medical University of Vienna (22).

Analysis of journals and research areas

A total of 523 articles were published in 228 journals. Table 2 presents the 10 journals that published the most articles on taVNS. Brain Stimulation (32 records, 6.12% of all articles) had the most publications, followed by Frontiers in Neuroscience (29, 5.55%), Autonomic Neuroscience: Basic and Clinical (22, 4.21%), Frontiers in Human Neuroscience (14, 2.68%), and Scientific Reports (13, 2.49%).

Table 2: The 10 most popular and most-cited journals.
Rank Popular journals Records
(n) 		2021 impact factor 2021 JCR partition Most-cited journals Citations 2021 impact factor 2021 JCR partition
1 Brain Stimulation 32 9.184 Q1 Brain Stimulation 1,823 9.184 Q1
2 Frontiers in Neuroscience 29 5.152 Q2 Epilepsia 742 6.74 Q1
3 Autonomic Neuroscience: Basic and Clinical 22 2.355 Q4 Neurology 599 12.258 Q1
4 Frontiers in Human Neuroscience 14 3.473 Q3 Journal of Neural Transmission 460 3.85 Q2
5 Scientific Reports 13 4.997 Q2 Brain Sciences 455 3.333 Q3
6 Frontiers in Neurology 11 4.086 Q2 PLOS One 436 3.752 Q2
7 Neuromodulation 11 3.025 Q3 Biological Psychiatry 430 12.81 Q1
8 PLOS One 11 3.752 Q2 Cephalalgia 409 6.075 Q1
9 Frontiers in Physiology 10 4.755 Q1 Frontiers in Neuroscience 359 5.152 Q2
10 Brain Sciences 9 3.333 Q3 Neuromodulation 354 3.025 Q3
JCR, Journal Citation Report.

The co-citation analysis identified 87 journals that were co-cited in more than 50 publications . Table 2 lists the 10 most-cited journals that published taVNS-related articles. Brain Stimulation received the largest number of citations (1823 citations), followed by Epilepsia (742 citations), Neurology (599 citations), Journal of Neural Transmission (460 citations), and Brain Research (455 citations).

The identified publications were classified under 56 research areas. The best-represented research area was neurosciences neurology, with 303 records, accounting for 57.94% of the articles. This area was followed by psychology (43, 8.22%), research experimental medicine (35, 6.69%), psychiatry (32, 6.12%), and cardiovascular system cardiology (31, 5.93%, Table 3).

Table 3: The 10 best-represented research areas.
Rank Research area Records (n) % (of 523)
1 Neurosciences neurology 303 57.93
2 Psychology 43 8.22
3 Research experimental medicine 35 6.69
4 Psychiatry 32 6.12
5 Cardiovascular system cardiology 31 5.93
6 Physiology 28 5.35
7 Science technology 28 5.35
8 Engineering 22 4.21
9 General internal medicine 22 4.21
10 Behavioral sciences 21 4.02

The analysis of journals and research areas provided an understanding of the publication landscape of taVNS research, highlighting the prominent journals in the field and the main areas of focus in the research community. This information may be valuable for researchers who wish to explore the existing literature and identify collaboration opportunities in specific research areas.

Analysis of authors

In terms of the number of publications, Peijing Rong was the most productive author, with 47 articles (8.99% of the articles), followed by Shaoyuan Li (21, 4.02%), Jiliang Fang (21, 4.02%), Bing Zhu (19, 3.63%), and Kaniusas Eugenijus (16, 3.6%) (Figure 3A). In terms of receiving citations in other authors’ taVNS studies, Peijing Rong was ranked first (1168 citations), followed by Bing Zhu (1109 citations), Ellrich Jens (937 citations), Jian Kong (727 citations), and Jiliang Fang (660 citations, Figure 3B).

Figure 3

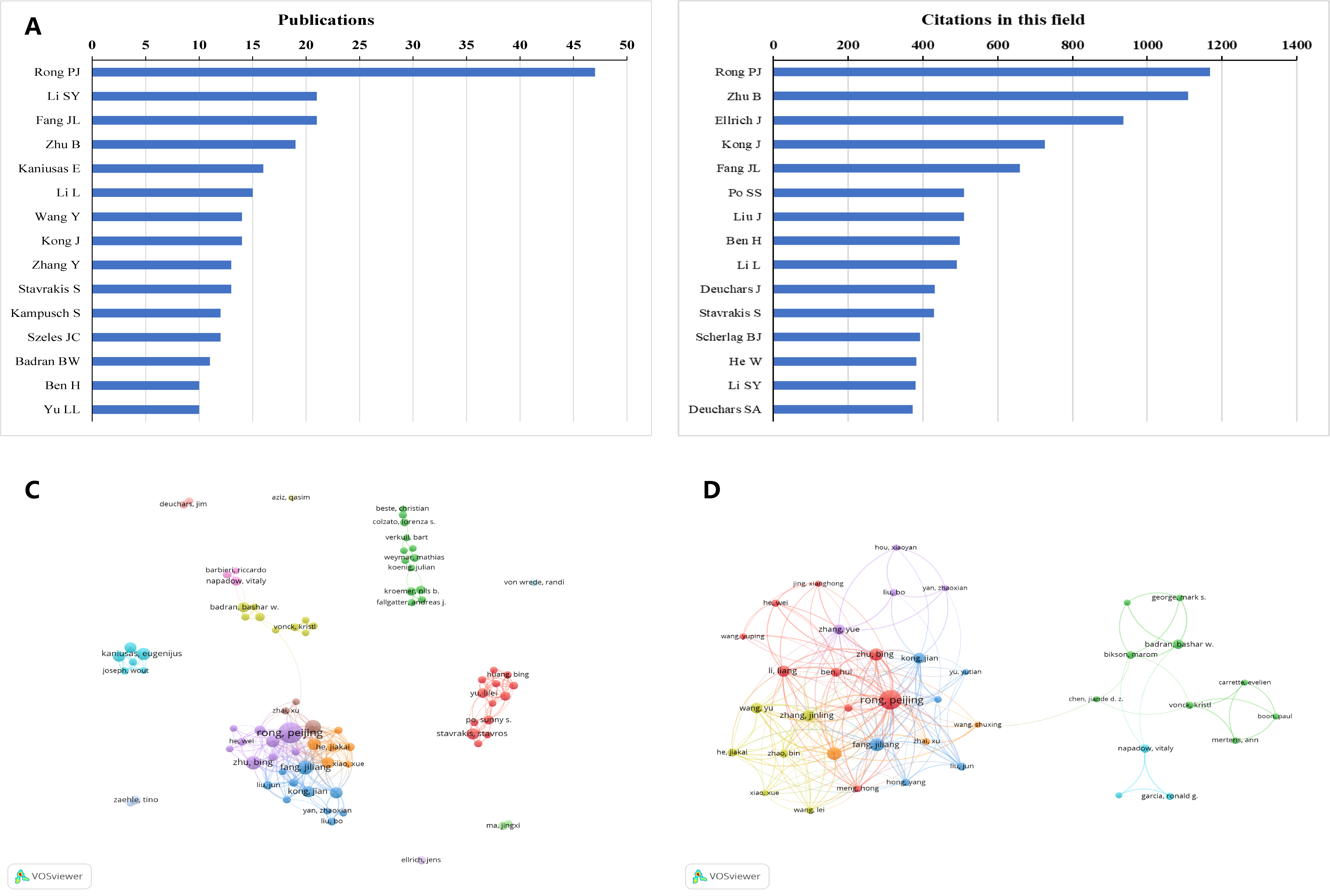

Figure 3. Authors contributing to taVNS research. (A) The 15 authors with the most publications. (B) Total citations of the 15 most-cited authors. (C) Network map of authors who were co-cited in more than five publications. (D) Network map of authors who were co-cited in more than five publications after excluding 41 unconnected items. taVNS, transcutaneous auricular vagus nerve stimulation.

We analyzed a total of 81 authors that were coauthored in more than five publications (Figure 3C). The exclusion of 41 items that were not connected revealed the collaborations of 40 authors (Figure 3D). The five authors with the highest total link strength were Peijing Rong (total link strength = 201 times), Shaoyuan Li (111), Jiliang Fang (109), Bing Zhu (88), and Liang Li (83).

Citation and co-citation analyses

The citation analysis showed that 73 articles received more than 50 citations. The exclusion of one disconnected item revealed a collaboration network of 72 articles (Figure 4A). Table 4 presents the 10 articles that received the most citations. The article “Non-Invasive Access to the Vagus Nerve Central Projections via Electrical Stimulation of the External Ear: fMRI Evidence in Humans” (Frangos et al., 2015) received 315 citations,[3] and “BOLD fMRI Deactivation of Limbic and Temporal Brain Structures and Mood Enhancing Effect by Transcutaneous Vagus Nerve Stimulation” (Kraus et al., 2007) received 236.[4] The third most-cited article was “Anti-Inflammatory Properties of the Vagus Nerve: Potential Therapeutic Implications of Vagus Nerve Stimulation” (Bonaz et al., 2016), with 220 citations.[5]

Figure 4

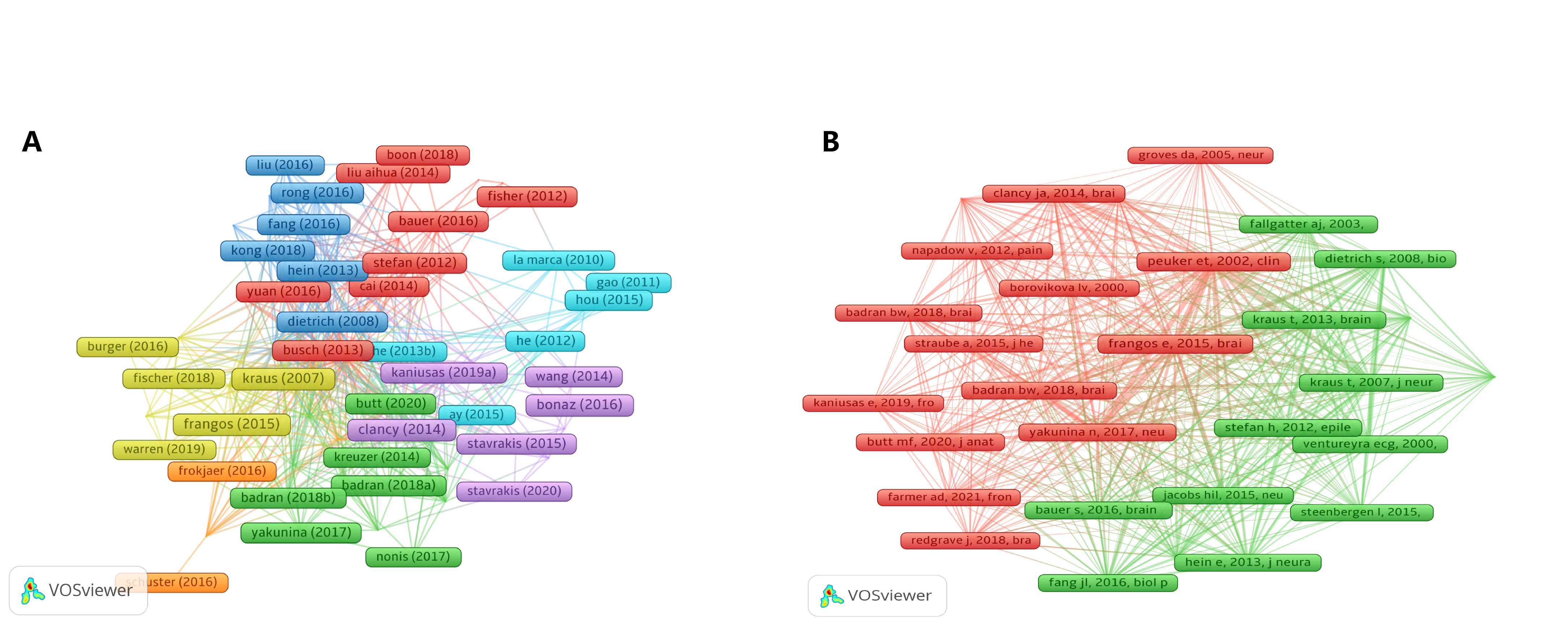

Figure 4. Citation and co-citation analyses. (A) Network map of articles that received more than 50 citations. (B) Network map of articles that were co-cited in more than 50 publications.

Table 4: Analysis of the 10 most-cited taVNS articles.
Rank Title Authors Source Publication year Citations (n)
1 Non-Invasive Access to the Vagus Nerve Central Projections via Electrical Stimulation of the External Ear: fMRI Evidence in Humans Frangos et al., 2015 Brain Stimulation 2015 315
2 BOLD fMRI Deactivation of Limbic And Temporal Brain Structures and Mood Enhancing Effect by Transcutaneous Vagus Nerve Stimulation Kraus et al., 2007 Journal of Neural Transmission 2007 236
3 Anti-Inflammatory Properties of the Vagus Nerve: Potential Therapeutic Implications of Vagus Nerve Stimulation Bonaz et al., 2016 Journal of Physiology 2016 220
4 Non-Invasive Vagus Nerve Stimulation in Healthy Humans Reduces Sympathetic Nerve Activity Clancy et al., 2017 Brain Stimulation 2017 215
5 Optimization of Transcutaneous Vagus Nerve Stimulation Using Functional MRI Yakunina et al., 2017 Neuromodulation 2017 176
6 Low-Level Transcutaneous Electrical Vagus Nerve Stimulation Suppresses Atrial Fibrillation Stavrakis et al., 2015 Journal of the American College of Cardiology 2015 172
7 CNS BOLD fMRI Effects of Sham-Controlled Transcutaneous Electrical Nerve Stimulation in the Left Outer Auditory Canal – A Pilot Study Kraus et al., 2013 Brain Stimulation 2013 169
8 Transcutaneous Vagus Nerve Stimulation Modulates Default Mode Network in Major Depressive Disorder Fang et al., 2016 Biological Psychiatry 2016 168
9 A Novel Transcutaneous Vagus Nerve Stimulation Leads to Brainstem and Cerebral Activations Measured by Functional MRI / Funktionelle Magnetresonanztomographie zeigt Aktivierungen des Hirnstamms und weiterer zerebraler Strukturen unter transkutaner Vagusnervstimulation Dietrich et al., 2008 Biomedical Engineering / Biomedizinische Technik 2008 160
10 Surgically Implanted and Non-Invasive Vagus Nerve Stimulation: A Review of Efficacy, Safety and Tolerability Ben-Menachem et al., 2015 European Journal of Neurology 2015 159
taVNS: transcutaneous auricular vagus nerve stimulation.

We analyzed 30 articles that were co-cited in more than 50 publications (Figure 4B). Table 5 lists the 10 articles that received the most citations. The five articles that received the most citations were by Peuker ET (2002, Clinical Anatomy; 213 citations), Frangos E (2015, Brain Stimulation; 170 citations), Kraus T (2007, Journal of Neural Transmission; 141), Yakunina N (2017, Neuromodulation; 124), and Kraus T (2013, Brain Stimulation; 116).[3,4,6–8]

Table 5: Top ten co-citation analysis of cited reference on taVNS research.
Rank Title Authors Source Publication year Citations (n)
1 The Nerve Supply of the Human Auricle Peuker et al., 2012 Clinical Anatomy 2002 213
2 Non-Invasive Access to the Vagus Nerve Central Projections via Electrical Stimulation of the External Ear: fMRI Evidence in Humans Frangos et al., 2015 Brain Stimulation 2015 170
3 BOLD fMRI Deactivation of Limbic and Temporal Brain Structures and Mood Enhancing Effect by Transcutaneous Vagus Nerve Stimulation Kraus et al., 2007 Journal of Neural Transmission 2007 141
4 Optimization of Transcutaneous Vagus Nerve Stimulation Using Functional MRI Yakunina et al., 2017 Neuromodulation 2017 124
5 CNS BOLD fMRI Effects of Sham-Controlled Transcutaneous Electrical Nerve Stimulation in the Left Outer Auditory Canal – A Pilot Study Kraus et al., 2013 Brain Stimulation 2013 116
6 Non-Invasive Vagus Nerve Stimulation in Healthy Humans Reduces Sympathetic Nerve Activity Clancy et al., 2017 Brain Stimulation 2014 106
7 A Novel Transcutaneous Vagus Nerve Stimulation Leads to Brainstem and Cerebral Activations Measured by Functional MRI / Funktionelle Magnetresonanztomographie zeigt Aktivierungen des Hirnstamms und weiterer zerebraler Strukturen unter transkutaner Vagusnervstimulation Dietrich et al., 2008 Biomedical Engineering / Biomedizinische Technik 2008 104
8 Neurophysiologic Effects of Transcutaneous Auricular Vagus Nerve Stimulation (taVNS) via Electrical Stimulation of the Tragus: A Concurrent taVNS/fMRI Study and Review Badran et al., 2018 Brain Stimulation 2018 90
9 Transcutaneous Vagus Nerve Stimulation Modulates Default Mode Network in Major Depressive Disorder Fang et al., 2016 Biological Psychiatry 2016 82
10 Transcutaneous Vagus Nerve Stimulation (t-VNS) in Pharmacoresistant Epilepsies: A Proof of Concept Trial Stefan et al., 2016 Epilepsia 2012 82
taVNS: transcutaneous auricular vagus nerve stimulation.

Analysis of keywords and topics

We analyzed a total of 68 author keywords that occurred more than five times (Figure 5A). In Figure 5B’s mapping of these keywords, the colors indicate the average publication year of the identified keywords. The majority of the keywords were published after 2019 and are indicated with greener or yellower colors. The density visualization in Figure 5C displays the same identified keywords but maps them according to the frequency of their appearance. Among the identified author keywords, the five diseases with the largest number of occurrences were depression (26 times), epilepsy (23), stroke (17), rehabilitation (11), and migraine (11).

Figure 5

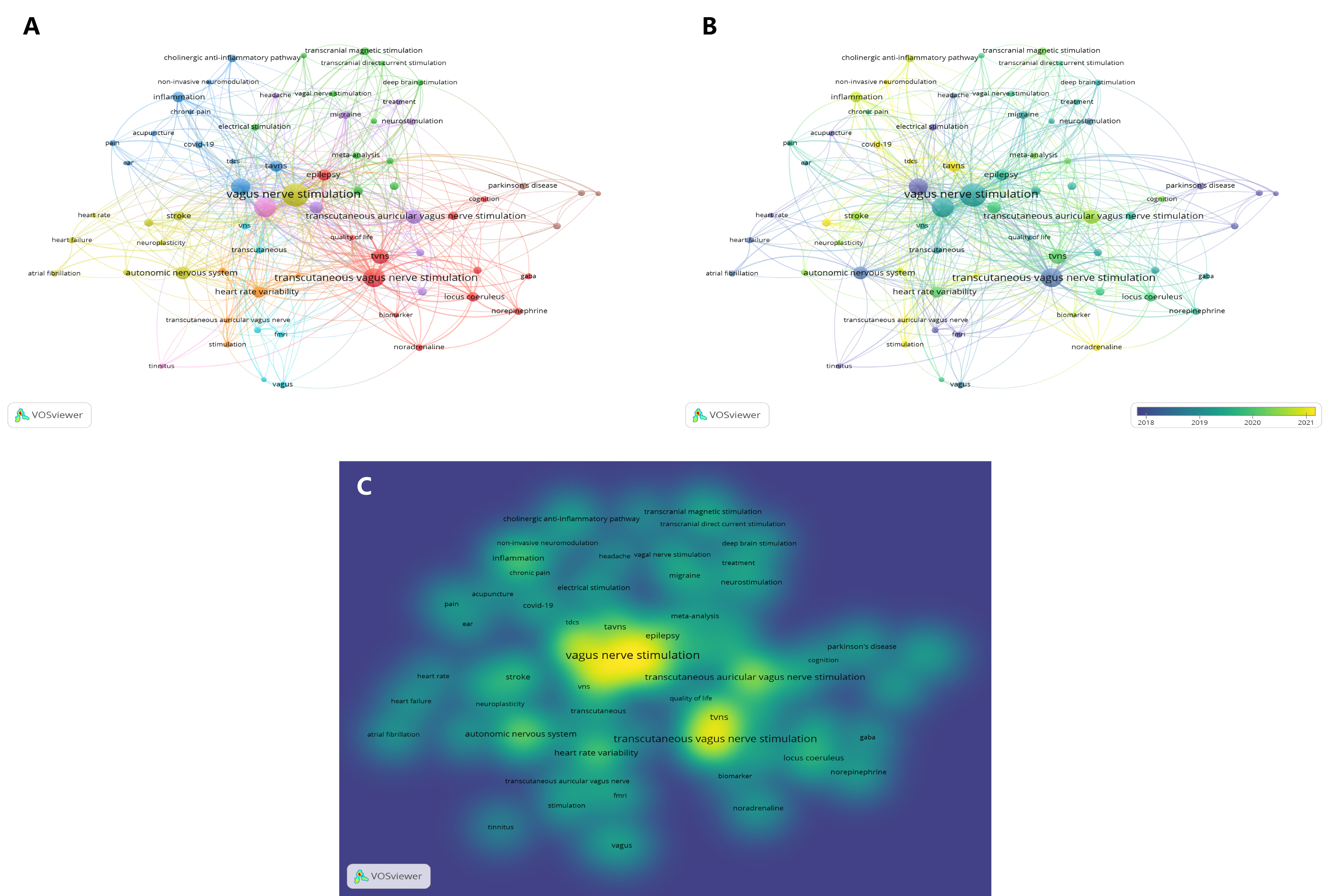

Figure 5. Co-occurrence analysis of author keywords. (A) Mapping of keywords of articles. (B) Distribution of keywords according to average publication year (blue: earlier; yellow: later). (C) Distribution of keywords according to the mean frequency of appearance. Keywords in yellow occurred with the highest frequency.

DISCUSSION

General information

Our study provides valuable insights into the general trends and characteristics of taVNS research. This field of research has experienced substantial expansion since its inception in 2000, with a consistent rise in annual publication output and a particularly strong increase in momentum from 2012 onward. This trend indicates the growing interest in and recognition of taVNS as a potential therapeutic intervention. Initially, taVNS was explored primarily as an alternative therapy to vagus nerve stimulation (VNS) for the treatment of epilepsy. However, its application has expanded to include various other conditions, including depression, stroke, rehabilitation period, pain, insomnia, cognitive impairment, cardiovascular disease, glucose-metabolism disorders, tinnitus, and potentially even COVID-19.[1,9,10] This diversification of research areas reflects the wide-ranging potential and versatility of taVNS as a therapeutic approach.

In the coauthorship analysis by country, China emerges as the leading contributor in terms of the number of articles. This finding highlights Chinese institutions’ active involvement and significant output in the field of taVNS research. On the other hand, Germany stands out in terms of the number of citations, which indicates the impact and recognition of German contributions to the field. The analysis also reveals a substantial increase in the number of studies conducted in the United States and England over the past two decades, along with a corresponding increase in the number of citations. This suggests the growing interest and engagement of researchers from these countries in taVNS research and their contributions to the field. Among the institutions, China Academy of Chinese Medical Sciences stands out as the most productive institution, indicating its active involvement and significant output in taVNS research. Moreover, this institution’s high total link strength indicates its strong network of collaboration with other institutions in the field.

Interdisciplinary and international collaboration plays an important role in advancing taVNS research. Currently, there is not a strong partnership between countries; that is, research teams from different countries exhibit distinct research ideas and focuses on taVNS. Rong Peijing, from the China Academy of Chinese Medical Sciences, is the most-published and most-cited author. Her clinical trials have demonstrated the efficacy and safety of taVNS in treating multiple conditions, including epilepsy, depression, insomnia, cognitive impairments, and metabolic disorders.[11–16] To facilitate the future development of taVNS, she recently proposed strategies to establish a wider range of taVNS criteria, including nomenclature and device criteria.[1,2] Kaniusas Eugeniju of the Vienna University of Technology has contributed to the enrichment of taVNS research from an engineering perspective, particularly in the area of computer modeling as a tool for optimizing taVNS.[17–20] Vitaly Napardow of Harvard Medical School has developed a taVNS device called respiration-assisted vagus nerve stimulation, which combines deep breathing with taVNS stimulation.[21] Nils B. Kroemer is a professor of psychiatry and psychotherapy at the University of Bonn, Germany, whose main contribution to the field is his research on the effects of taVNS on reward processing and motivation.[22–24]

Indeed, the diverse expertise of these authors and other researchers has immensely enriched the field of taVNS research, paving the way for further investigation and broader clinical application of taVNS. Our review identifies potential trends of future research and development opportunities that build on these achievements (Figure 6). It is hoped that increased collaboration will be fostered among research teams with common goals and interests in an effort to tackle challenges and explore new frontiers in taVNS research.

Figure 6

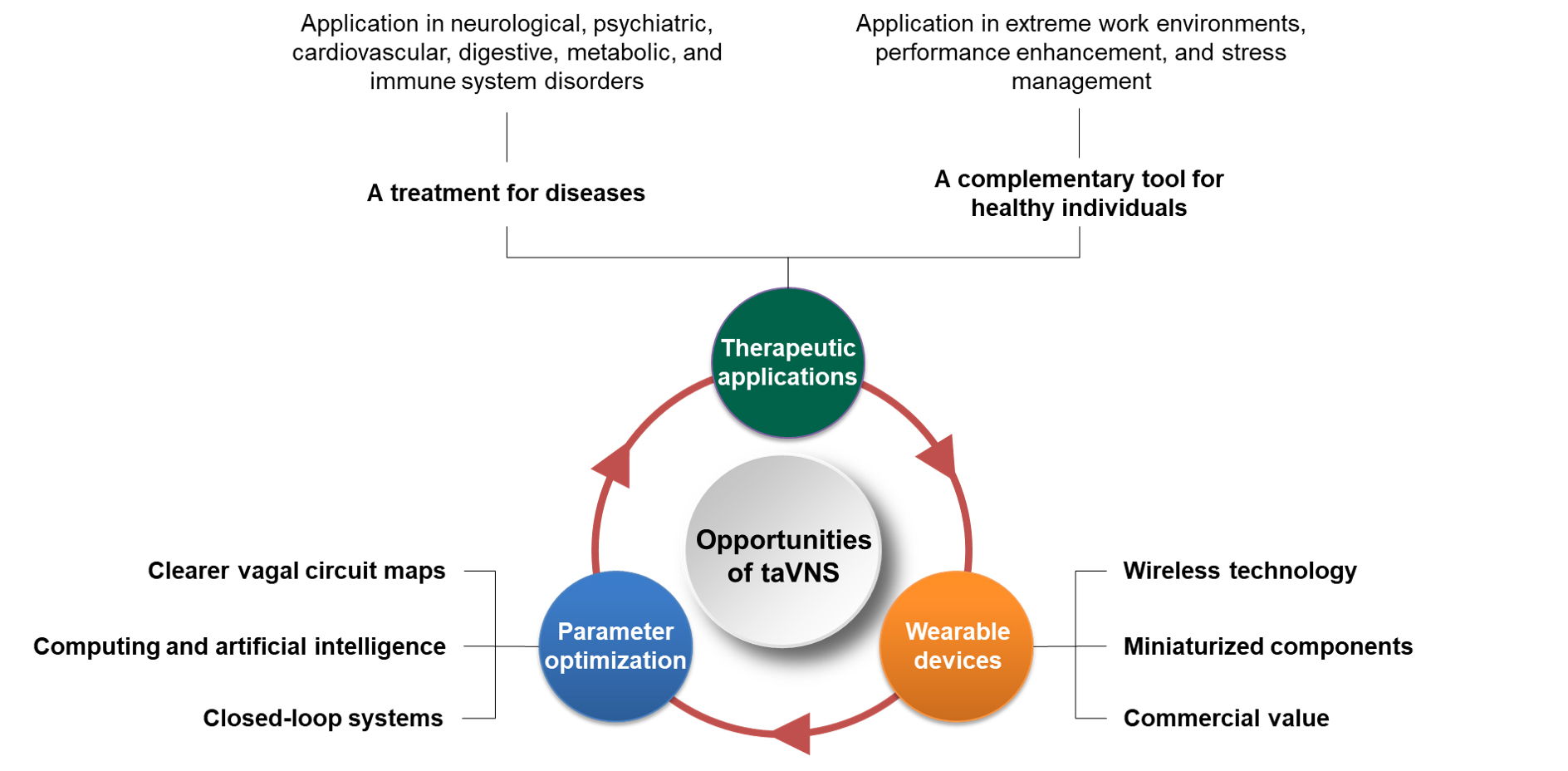

Figure 6. Graphical abstract of opportunities in taVNS research and development. taVNS, transcutaneous auricular vagus nerve stimulation.

Therapeutic applications of taVNS with broad potential

Although taVNS was initially considered an alternative to VNS, its noninvasive and nonsurgical characteristics have expanded its range of application far beyond VNS. The analysis of keywords and topics indicates that the five medical conditions with the most occurrences were depression, epilepsy, stroke, rehabilitation period, and migraine. The extant research has explored the applicability of taVNS to a wide variety of diseases and conditions, including neurological, psychiatric, cardiovascular, digestive, metabolic, and immune-system disorders, demonstrating its potential as a versatile therapeutic approach.[25–29] In some cases, taVNS has even been shown to be superior to VNS; for example, a meta-analysis showed that patients who received taVNS in the acute/subacute phase of stroke experienced greater effects than patients who received VNS.[30] The ease of combining taVNS with other medical procedures also helps to broaden its application. For example, previous studies have explored the combination of taVNS with breathing exercises,[31,32] meditation,[33] cognitive behavioral therapy,[24] and physical rehabilitation;[34] each of these combinations may have synergistic effects.

Furthermore, taVNS can be used to enhance cognitive performance,[35–40] emotional regulation,[24,41] and psychological well-being in healthy individuals,[42–44] which may expand its application toareas such as extreme work environments, performance enhancement, and stress management. Thus, the use of taVNS can be extended beyond clinical settings to various fields of endeavor, including sports, education, and workplace productivity. For example, taVNS can be used to enhance cognitive and physical performance in athletes,[32,45,46] improve attention and learning in students,[23,47–51] and increase productivity and creativity in employees.[22,52] Therefore, it can serve not only as a treatment for disease but also as a complementary tool for healthy individuals. It should be noted that further research and validation are necessary to determine the reliability and safety of these effects.

Parameter optimization of taVNS for enhanced precision

Parameter optimization of taVNS is a critical procedure for determining the most effective and accurate stimulation parameters, including electrode placement and stimulation intensity, frequency, and duration. It is important to recognize that optimal parameter settings may vary depending on individual patients’ physiological, clinical, and disease characteristics. The following paragraphs outline some additional considerations and opportunities related to parameter optimization.

Clearer understanding of mechanisms and vagal-circuit maps: Ongoing research in Phase 2 of the Stimulating Peripheral Activity to Relieve Conditions (SPARC) program will advance our knowledge of the vagus nerve, including its anatomy and functional characteristics.[53] This improved knowledge will provide a valuable resource for optimizing parameters and allow for more precise targeting of specific neural circuits or organ systems. Continued exploration of the vagus nerve’s anatomical connectivity and functional aspects, as well as the neural circuits involved in specific diseases or symptoms, will strengthen our understanding of the underlying mechanisms of taVNS.[54] Additionally, it is noteworthy that the anti-inflammatory effect of taVNS may account for its wide-ranging applications, suggesting that the effectiveness of taVNS in various chronic diseases is based on a shared mechanism.[5,55–57] Mounting evidence indicates that inflammation plays a significant role in chronic illnesses.[58–63] Therefore, the potential to achieve targeted modulation of immune cells rather than neural cells through taVNS will open up new possibilities for high-precision stimulation.

Advances in computing and artificial intelligence: Advances in computer technology have made it possible to use mathematical models and computer simulations to optimize parameter settings for taVNS. The purpose of the SPARC portal is to share curated datasets, detailed neuroanatomical maps, and simulations to facilitate experimental computation and visualization.[64] Additionally, the program will create an open-source device specification that encompasses hardware, software, firmware, and other necessary technical modules to support the development of neuromodulation tools and stimulation simulations. With these resources, researchers can effectively explore the impact of various parameter combinations on neural circuits and physiological processes using mathematical models and computer simulations.[17,20] This advance significantly reduces reliance on animal and human experiments, lowers research costs, and accelerates the process of parameter optimization. It should be emphasized that the ongoing development of artificial intelligence will further accelerate and enhance this progression.[65]

Closed-loop systems and personalized treatment: Because individual patients may respond differently to taVNS, personalized parameter optimization is crucial. The development of closed-loop taVNS systems that dynamically adjust stimulation parameters based on real-time physiological feedback has the potential to improve precision. These systems can be configured with parameters that correspond to specific health conditions and adjusted in real time according to individual responses, thus meeting the specific needs of each patient and optimizing the effectiveness of neuromodulation.[66–68]Personalized treatment represents the pinnacle of precision medicine and is the ultimate goal of high-precision stimulation, the full realization of which requires the integration of the technologies described above with medical-device development.

Wearable taVNS devices for convenience and commercialization

TaVNS devices play a crucial role in both widespread clinical applications and highly precise stimulation modalities. Although taVNS has a relatively short history of 20 years, the devices incorporating taVNS technology have been continuously updated. As engineering and materials-science technologies have continued to progress, the noninvasive and portable characteristics of taVNS have become increasingly more apparent, giving rise to the trend of wearable devices. A review has provided an overview of the current status of taVNS devices, highlighting the rapid development and improvement of high-tech, intelligent, and compact taVNS devices.[1]

Currently, the commercialization of taVNS is showing promising signs; for example, a San Francisco-based startup has received a significant investment. The funding is directed towards the development of a wireless, earbud-like taVNS device designed to target specific brain regions and address inflammatory diseases like rheumatoid arthritis. The startup had already completed a multicenter, single-arm, 30-patient pilot clinical trial that demonstrated a significant reduction in the severity of rheumatoid-arthritis symptoms.[69] The trial’s promising results have prompted further investment in ongoing clinical trials.

In summary, the integration of wireless technology and miniaturized components has driven the development of user-friendly and compact taVNS devices, offering convenience and usability to patients who wish to use stimulation therapy in their daily lives. Among other neurostimulation techniques, taVNS stands out due to its unique stimulation site, which makes the taVNS amenable to integration into everyday items like headphones and earbuds. Such seamless integration will allow taVNS to blend into daily routines, thereby mitigating the stigma associated with illness and even creating new fashion trends, which could further enhance the therapy’s commercial value.[69,70]

Limitations

To our knowledge, this study is the first bibliometric analysis of taVNS research. Although our literature survey was comprehensive, it may have some limitations. First, we primarily used the WoSCC database for literature retrieval and analysis and did not incorporate other databases, such as PubMed and Scopus, which may have resulted in the omission of some relevant literature. However, it is worth noting that the WoSCC is the most widely used database in scientometrics and that most bibliometric software can recognize and process its format. Second, the results of our keyword analysis may have been influenced by incomplete keyword extraction. Because we presented only keywords that appeared at least five times, we may have overlooked the importance of some relevant keywords. Third, in order to analyze complete annual data, we limited the timeframe of the literature to 2000 – 2022 and thus omitted literature from 2023; this omission may have lead to a lack of coverage of the latest research trends and developments. Fourth, the literature on ear stimulation has used various expressions and names for taVNS. We conducted retrieval and analysis based on previous studies, including literature with different names in the field of taVNS as much as possible.

CONCLUSION

This paper highlights three prominent opportunities in the field of taVNS research: (1) the broad therapeutic potential of taVNS, (2) the optimization of taVNS parameters to enhance the precision of stimulation, and (3) the development of wearable devices for convenience and commercialization. However, along with these opportunities, certain challenges need to be addressed. This study’s findings have the potential to promote consensus building, foster collaboration, and collectively drive the advancement of taVNS technology.

Declaration

Acknowledgement

None.

Author contributions

Xin C: Conceptualization, Writing—Original draft preparation, Writing—Reviewing and Editing. Zhang YZH: Writing—Original draft preparation. Guo J: Conceptualization, Writing—Reviewing and Editing. Wang Y: Conceptualization, Supervision. Wang YF: Conceptualization, Supervision. Zhao YN: Conceptualization, Supervision. Zou NY: Conceptualization, Writing—Reviewing and Editing. Li SY: Supervision, Project administration. Rong PJ: Supervision, Project administration. All authors reviewed and approved the final version of the manuscript.

Ethics approval

Not applicable.

Source of funding

This work was supported by the National Natural Science Foundation of China (grant number 82174519), the National Key R&D Program of China (grant 2022YFC3500500, 2022YFC3500501) and Young Elite Scientists Sponsorship Program by CAST (2021-2023ZGZJXH-QNRC002).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Data availability statement

No additional data.

REFERENCES

  1. Wang L, Wang Y, Wang Y, et al. Transcutaneous auricular vagus nerve stimulators: a review of past, present, and future devices. Expert Rev Med Devices. 2022;19(1):43–61.
  2. Wang Y, Li L, Li S, et al. Toward Diverse or Standardized: A Systematic Review Identifying Transcutaneous Stimulation of Auricular Branch of the Vagus Nerve in Nomenclature. Neuromodulation. 2022;25:366–379.
  3. Frangos E, Ellrich J, Komisaruk BR. Non-invasive access to the vagus nerve central projections via electrical stimulation of the external ear: fMRI evidence in humans. Brain Stimul. 2015;8(3):624–636.    DOI: 10.1016/j.brs.2014.11.018    PMID: 25573069
  4. Kraus T, Hösl K, Kiess O, Schanze A, Kornhuber J, Forster C. BOLD fMRI deactivation of limbic and temporal brain structures and mood enhancing effect by transcutaneous vagus nerve stimulation. J Neural Transm. 2007;114(11):1485–1493.    DOI: 10.1007/s00702-007-0755-z    PMID: 17564758
  5. Bonaz B, Sinniger V, Pellissier S. Anti-inflammatory properties of the vagus nerve: potential therapeutic implications of vagus nerve stimulation. J Physiol. 2016;594(20):5781–5790.    DOI: 10.1113/JP271539    PMID: 27059884
  6. Peuker ET, Filler TJ. The nerve supply of the human auricle. Clin Anat. 2002;15:35–37.    DOI: 10.1002/ca.1089    PMID: 11835542
  7. Yakunina N, Kim SS, Nam E-C. Optimization of Transcutaneous Vagus Nerve Stimulation Using Functional MRI. Neuromodulation: Technology at the Neural Interface. 2017;20:290–300.    DOI: 10.1111/ner.12541    PMID: 27898202
  8. Kraus T, Kiess O, Hösl K, Terekhin P, Kornhuber J, Forster C. CNS BOLD fMRI Effects of Sham-Controlled Transcutaneous Electrical Nerve Stimulation in the Left Outer Auditory Canal – A Pilot Study. Brain Stimulation. 2013;6:798–804.    DOI: 10.1016/j.brs.2013.01.011    PMID: 23453934
  9. Ventureyra ECG. Transcutaneous vagus nerve stimulation for partial onset seizure therapy. Child's Nerv Syst. 2000;16(2):101–102.
  10. Kim AY, Marduy A, de Melo PS, et al. Safety of transcutaneous auricular vagus nerve stimulation (taVNS): a systematic review and meta-analysis. Sci Rep. 2022;12(1):22055.    DOI: 10.1038/s41598-022-25864-1    PMID: 36543841
  11. Fang J, Rong P, Hong Y, et al. Transcutaneous vagus nerve stimulation modulates default mode network in major depressive disorder. Biol Psychiatry. 2016;79(4):266–273.    DOI: 10.1016/j.biopsych.2015.03.025    PMID: 25963932
  12. Wang L, Zhang J, Guo C, et al. The efficacy and safety of transcutaneous auricular vagus nerve stimulation in patients with mild cognitive impairment: A double blinded randomized clinical trial. Brain Stimul. 2022;15(6):1405–1414.
  13. Rong P, Liu J, Wang L, et al. Effect of transcutaneous auricular vagus nerve stimulation on major depressive disorder: a nonrandomized controlled pilot study. J Affect Disord. 2016;195:172–179.    DOI: 10.1016/j.jad.2016.02.031    PMID: 26896810
  14. Rong P, Liu A, Zhang J, et al. An alternative therapy for drug-resistant epilepsy: transcutaneous auricular vagus nerve stimulation. Chin Med J. 2014;127(2):300–304.    PMID: 24438620
  15. Huang F, Dong J, Kong J, et al. Erratum to: effect of transcutaneous auricular vagus nerve stimulation on impaired glucose tolerance: a pilot randomized study. BMC Complement Altern Med. 2016;16(1):218.    DOI: 10.1186/s12906-016-1190-1    PMID: 27411374
  16. Tu Y, Fang J, Cao J, et al. A distinct biomarker of continuous transcutaneous vagus nerve stimulation treatment in major depressive disorder. Brain Stimul. 2018;11(3):501–508.    DOI: 10.1016/j.brs.2018.01.006    PMID: 29398576
  17. Samoudi AM, Kampusch S, Tanghe E, et al. Numerical modeling of percutaneous auricular vagus nerve stimulation: a realistic 3D model to evaluate sensitivity of neural activation to electrode position. Med Biol Eng Comput. 2017;55(10):1763–1772.
  18. Kaniusas E, Kampusch S, Tittgemeyer M, et al. Current directions in the auricular vagus nerve stimulation II - an engineering perspective. Front Neurosci. 2019;13:772.    DOI: 10.3389/fnins.2019.00772    PMID: 31396044
  19. Van de Steene T, Tanghe E, Tarnaud T, et al. Sensitivity study of neuronal excitation and cathodal blocking thresholds of myelinated axons for percutaneous auricular vagus nerve stimulation. IEEE Trans Biomed Eng. 2020;67(12):3276–3287.    DOI: 10.1109/TBME.2020.2982271    PMID: 32203014
  20. Kaniusas E, Samoudi AM, Kampusch S, et al. Stimulation pattern efficiency in percutaneous auricular vagus nerve stimulation: experimental versus numerical data. IEEE Trans Biomed Eng. 2020;67(7):1921–1935.    DOI: 10.1109/TBME.2019.2950777    PMID: 31675313
  21. Garcia RG, Lin RL, Lee J, et al. Modulation of brainstem activity and connectivity by respiratory-gated auricular vagal afferent nerve stimulation in migraine patients. Pain. 2017;158(8):1461–1472.    DOI: 10.1097/j.pain.0000000000000930    PMID: 28541256
  22. Neuser MP, Teckentrup V, Kühnel A, Hallschmid M, Walter M, Kroemer NB. Vagus nerve stimulation boosts the drive to work for rewards. Nat Commun. 2020;11(1):3555.    DOI: 10.1038/s41467-020-17344-9    PMID: 32678082
  23. Kühnel A, Teckentrup V, Neuser MP, et al. Stimulation of the vagus nerve reduces learning in a go/no-go reinforcement learning task. Eur Neuropsychopharmacol. 2020;35:17–29.    DOI: 10.1016/j.euroneuro.2020.03.023    PMID: 32404279
  24. Ferstl M, Teckentrup V, Lin WM, et al. Non-invasive vagus nerve stimulation boosts mood recovery after effort exertion. Psychol Med. 2022;52(14):3029–3039.    DOI: 10.1017/S0033291720005073    PMID: 33586647
  25. Wang Y, Li SY, Wang D, et al. Transcutaneous auricular vagus nerve stimulation: from concept to application. Neurosci Bull. 2021;37(6):853–862.
  26. Dedoncker J, Vanderhasselt MA, Ottaviani C, Slavich GM. Mental health during the COVID-19 pandemic and beyond: the importance of the vagus nerve for biopsychosocial resilience. Neurosci Biobehav Rev. 2021;125:1–10.    DOI: 10.1016/j.neubiorev.2021.02.010    PMID: 33582230
  27. Yap JYY, Keatch C, Lambert E, Woods W, Stoddart PR, Kameneva T. Critical review of transcutaneous vagus nerve stimulation: challenges for translation to clinical practice. Front Neurosci. 2020;14:284.    DOI: 10.3389/fnins.2020.00284    PMID: 32410932
  28. Kaniusas E, Kampusch S, Tittgemeyer M, et al. Current directions in the auricular vagus nerve stimulation I - A physiological perspective. Front Neurosci. 2019;13:854.    DOI: 10.3389/fnins.2019.00854    PMID: 31447643
  29. Redgrave J, Day D, Leung H, et al. Safety and tolerability of Transcutaneous Vagus Nerve stimulation in humans; a systematic review. Brain Stimul. 2018;11(6):1225–1238.    DOI: 10.1016/j.brs.2018.08.010    PMID: 30217648
  30. Gao Y, Zhu Y, Lu X, et al. Vagus nerve stimulation paired with rehabilitation for motor function, mental health and activities of daily living after stroke: a systematic review and meta-analysis. J Neurol Neurosurg Psychiatry. 2023;94(4):257–266.    DOI: 10.1136/jnnp-2022-329275    PMID: 36600569
  31. Meints SM, Garcia RG, Schuman-Olivier Z, et al. The effects of combined respiratory-gated auricular vagal afferent nerve stimulation and mindfulness meditation for chronic low back pain: a pilot study. Pain Med. 2022;23(9):1570–1581.    DOI: 10.1093/pm/pnac025    PMID: 35148407
  32. Vanderhasselt M, Ottaviani C. Combining top-down and bottom-up interventions targeting the vagus nerve to increase resilience. Neurosci Biobehav Rev. 2021;132:725–729.
  33. Finisguerra A, Crescentini C, Urgesi C. Transcutaneous vagus nerve stimulation affects implicit spiritual self-representations. Neuroscience. 2019;412:144–159.    DOI: 10.1016/j.neuroscience.2019.05.059    PMID: 31176701
  34. Yan L, Qian Y, Li H. Transcutaneous vagus nerve stimulation combined with rehabilitation training in the intervention of upper limb movement disorders after stroke: a systematic review. Neuropsychiatr Dis Treat. 2022;18:2095–2106.
  35. Colzato L, Beste C. A literature review on the neurophysiological underpinnings and cognitive effects of transcutaneous vagus nerve stimulation: challenges and future directions. J Neurophysiol. 2020;123:1739–1755.    DOI: 10.1152/jn.00057.2020
  36. Broncel A, Bocian R, Kłos-Wojtczak P, Kulbat-Warycha K, Konopacki J. Vagal nerve stimulation as a promising tool in the improvement of cognitive disorders. Brain Res Bull. 2020;155:37–47.    DOI: 10.1016/j.brainresbull.2019.11.011    PMID: 31790720
  37. Zhao R, Chang MY, Cheng C, et al. Transcutaneous auricular vagus stimulation (taVNS) improves human working memory performance under sleep deprivation stress. Behav Brain Res. 2023;439:114247.
  38. Ridgewell C, Heaton KJ, Hildebrandt A, Couse J, Leeder T, Neumeier WH. The effects of transcutaneous auricular vagal nerve stimulation on cognition in healthy individuals: a meta-analysis. Neuropsychology. 2021;35(4):352–365.    DOI: 10.1037/neu0000735    PMID: 34043386
  39. Zhao R, He ZY, Cheng C, et al. Assessing the effect of simultaneous combining of transcranial direct current stimulation and transcutaneous auricular vagus nerve stimulation on the improvement of working memory performance in healthy individuals. Front Neurosci. 2022;16:947236.    DOI: 10.3389/fnins.2022.947236    PMID: 35928012
  40. Pihlaja M, Failla L, Peräkylä J, Hartikainen KM. Reduced frontal nogo-N2 with uncompromised response inhibition during transcutaneous vagus nerve stimulation-more efficient cognitive control? Front Hum Neurosci. 2020;14:561780.    DOI: 10.3389/fnhum.2020.561780    PMID: 33132877
  41. Szeska C, Richter J, Wendt J, Weymar M, Hamm AO. Attentive immobility in the face of inevitable distal threat-Startle potentiation and fear bradycardia as an index of emotion and attention. Psychophysiology. 2021;58(6):e13812.    DOI: 10.1111/psyp.13812    PMID: 33759212
  42. Bretherton B, Atkinson L, Murray A, Clancy J, Deuchars S, Deuchars J. Effects of transcutaneous vagus nerve stimulation in individuals aged 55 years or above: potential benefits of daily stimulation. Aging. 2019;11(14):4836–4857.    DOI: 10.18632/aging.102074    PMID: 31358702
  43. Bustamante-Sánchez Á, Tornero-Aguilera JF, Fernández-Elías VE, Hormeño-Holgado AJ, Dalamitros AA, Clemente-Suárez VJ. Effect of stress on autonomic and cardiovascular systems in military population: a systematic review. Cardiol Res Pract. 2020;2020:7986249.    DOI: 10.1155/2020/7986249    PMID: 32850146
  44. Sellaro R, de Gelder B, Finisguerra A, Colzato LS. Transcutaneous vagus nerve stimulation (tVNS) enhances recognition of emotions in faces but not bodies. Cortex. 2018;99:213–223.    DOI: 10.1016/j.cortex.2017.11.007    PMID: 29275193
  45. Borges U, Knops L, Laborde S, Klatt S, Raab M. Transcutaneous vagus nerve stimulation may enhance only specific aspects of the core executive functions. A randomized crossover trial. Front Neurosci. 2020;14:523.    DOI: 10.3389/fnins.2020.00523    PMID: 32523510
  46. Colzato LS, Wolters G, Peifer C. Transcutaneous vagus nerve stimulation (tVNS) modulates flow experience. Exp Brain Res. 2018;236(1):253–257.    DOI: 10.1007/s00221-017-5123-0    PMID: 29128975
  47. Colzato LS, Ritter SM, Steenbergen L. Transcutaneous vagus nerve stimulation (tVNS) enhances divergent thinking. Neuropsychologia. 2018;111:72–76.    DOI: 10.1016/j.neuropsychologia.2018.01.003    PMID: 29326067
  48. Llanos F, McHaney JR, Schuerman WL, Yi HG, Leonard MK, Chandrasekaran B. Non-invasive peripheral nerve stimulation selectively enhances speech category learning in adults. NPJ Sci Learn. 2020;5:12.    DOI: 10.1038/s41539-020-0070-0    PMID: 32802406
  49. Thakkar VJ, Engelhart AS, Khodaparast N, Abadzi H, Centanni TM. Transcutaneous auricular vagus nerve stimulation enhances learning of novel letter-sound relationships in adults. Brain Stimul. 2020;13(6):1813–1820.    DOI: 10.1016/j.brs.2020.10.012    PMID: 33127581
  50. Kaan E, De Aguiar I, Clarke C, Lamb DG, Williamson JB, Porges EC. A transcutaneous vagus nerve stimulation study on verbal order memory. J Neurolinguistics. 2021;59:100990.
  51. Phillips I, Calloway RC, Karuzis VP, Pandža NB, O’Rourke P, Kuchinsky SE. Transcutaneous auricular vagus nerve stimulation strengthens semantic representations of foreign language tone words during initial stages of learning. J Cogn Neurosci. 2021;34(1):127–152.
  52. Steenbergen L, Colzato LS, Maraver MJ. Vagal signaling and the somatic marker hypothesis: the effect of transcutaneous vagal nerve stimulation on delay discounting is modulated by positive mood. Int J Psychophysiol. 2020;148:84–92.    DOI: 10.1016/j.ijpsycho.2019.10.010][    PMID: 31734442
  53. National Institutes of Health. Stimulating Peripheral Activity to Relieve Conditions (SPARC) Phase 2 2022. Accessed May 16, 2023. https://commonfund.nih.gov/sparc/fundedresearch/phase2
  54. Ahmed U, Chang YC, Zafeiropoulos S, Nassrallah Z, Miller L, Zanos S. Strategies for precision vagus neuromodulation. Bioelectron Med. 2022;8(1):9.    DOI: 10.1186/s42234-022-00091-1    PMID: 35637543
  55. Bonaz B, Sinniger V, Pellissier S. The Vagus Nerve in the Neuro-Immune Axis: Implications in the Pathology of the Gastrointestinal Tract. Front Immunol. 2017;8:1452.    DOI: 10.3389/fimmu.2017.01452
  56. Tynan A, Brines M, Chavan SS. Control of inflammation using non-invasive neuromodulation: past, present and promise. Int Immunol. 2022;34(2):119–128.    DOI: 10.1093/intimm/dxab073    PMID: 34558623
  57. Cirillo G, Negrete-Diaz F, Yucuma D, et al. Vagus nerve stimulation: a personalized therapeutic approach for Crohn’s and other inflammatory bowel diseases. Cells. 2022;11(24):4103.    DOI: 10.3390/cells11244103    PMID: 36552867
  58. Sen T, Cawthon CR, Ihde BT, et al. Diet-driven microbiota dysbiosis is associated with vagal remodeling and obesity. Physiol Behav. 2017;173:305–317.    DOI: 10.1016/j.physbeh.2017.02.027    PMID: 28249783
  59. Furman D, Campisi J, Verdin E, et al. Chronic inflammation in the etiology of disease across the life span. Nat Med. 2019;25(12):1822–1832.    DOI: 10.1038/s41591-019-0675-0    PMID: 31806905
  60. Straub RH, Cutolo M, Buttgereit F, Pongratz G. Energy regulation and neuroendocrine-immune control in chronic inflammatory diseases. J Intern Med. 2010;267(6):543–560.    DOI: 10.1111/j.1365-2796.2010.02218.x    PMID: 20210843
  61. Straub RH. The brain and immune system prompt energy shortage in chronic inflammation and ageing. Nat Rev Rheumatol. 2017;13(12):743–751.    DOI: 10.1038/nrrheum.2017.172    PMID: 29021568
  62. Martel J, Chang SH, Ko YF, Hwang TL, Young JD, Ojcius DM. Gut barrier disruption and chronic disease. Trends Endocrinol Metab. 2022;33(4):247–265.    DOI: 10.1016/j.tem.2022.01.002    PMID: 35151560
  63. Wang P, Song M, Eliassen AH, et al. Optimal dietary patterns for prevention of chronic disease. Nat Med. 2023;29(3):719–728.    DOI: 10.1038/s41591-023-02235-5][PubMed    PMID: 36914892
  64. SPARC. [SPARC Portal]. Accessed January 2, 2023. https://sparc.science/
  65. Capogrosso M, Lempka SF. A computational outlook on neurostimulation. Bioelectron Med. 2020;6:10.    DOI: 10.1186/s42234-020-00047-3    PMID: 32490037
  66. Dabiri B, Zeiner K, Nativel A, Kaniusas E. Auricular vagus nerve stimulator for closed-loop biofeedback-based operation. Analog Integr Circuits Process. 2022;112:237–46.    DOI: 10.1007/s10470-022-02037-8    PMID: 35571976
  67. Cook DN, Thompson S, Stomberg-Firestein S, Bikson M, George MS, Jenkins DD, et al. Design and validation of a closed-loop, motor-activated auricular vagus nerve stimulation (MAAVNS) system for neurorehabilitation. Brain Stimul 2020;13:800–3.    DOI: 10.1016/j.brs.2020.02.028    PMID: 32289710
  68. Burger AM, D’Agostini M, Verkuil B, Van Diest I. Moving beyond belief: A narrative review of potential biomarkers for transcutaneous vagus nerve stimulation. Psychophysiology. 2020;57:e13571.    DOI: 10.1111/psyp.13571    PMID: 32202671
  69. Marsal S, Corominas H, de Agustín JJ, et al. Non-invasive vagus nerve stimulation for rheumatoid arthritis: a proof-of-concept study. Lancet Rheumatol. 2021;3(4):e262–e269.    DOI: 10.1016/S2665-9913(20)30425-2    PMID: 38279410
  70. Bremner JD, Gurel NZ, Wittbrodt MT, et al. Application of noninvasive vagal nerve stimulation to stress-related psychiatric disorders. J Pers Med. 2020;10(3):119.    DOI: 10.3390/jpm10030119    PMID: 32916852

License

Copyright (c) 2024 Gut Microbiota and Integrative Wellness

Creative Commons License

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.

Crossref
Scopus
Google Scholar
Europe PMC
